License Plate Recognition Camera (One-Way)

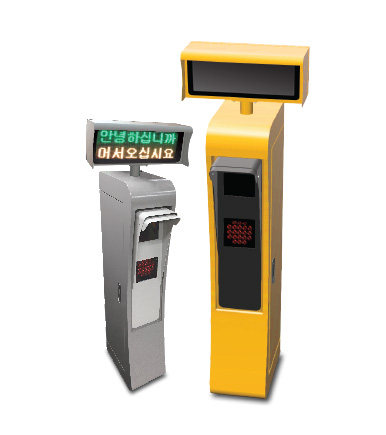

License Plate Recognition Camera
(CMP-LD200)
The License Plate Recognition (LPR) System analyzes captured images to manage both registered and general vehicles, maximizing transparency and efficiency in parking management.
The display board shows license plate data of registered vehicles, while for general vehicles, the LPR Camera reads the plate number, provides guidance messages, and verifies entry status.
This system operates in conjunction with the management system that stores information such as registered and general vehicle data.
Product Features
- The video recognition camera is installed at parking lot entrances and exits to recognize residents’ license plates for access control, and to collect fees from visitor vehicles.
- Records visitor license plates and displays them upon vehicle entry, while showing user-defined guidance messages during normal operation.
- LED Display "Lot Full" Indicator Function
Product Specifications
Camera Lens for License Plate Recognition
- 30FPS (30 frames per second)
- 2 Megapixels (1600 x 1200)
- Focal length 10 ~ 40mm, IR correction
- C / CS Mount
- Global Shutter
Optimal Camera Installation Conditions
- Distance between camera and license plate: 3~5m
- Camera coverage: 2m horizontal, 2m vertical
- License plate illumination: 200 lux or higher
- Camera illumination: 200 lux or higher
- Vertical rotation angle: up to 45°, Horizontal rotation angle: 30°, Front/rear rotation angle: up to 30°
- Vehicle speed: 0~20 km/h
- Lighting device: built-in type
Enclosure Structure
Self-Standing Waterproof Type
Enclosure Material
STEEL, Electrostatic Powder Coating
System Specifications
| Power Supply & Capacity | AC 220V, 60Hz |
|---|---|
| Temperature Control | -30℃ ~ +65℃ |
| Material | STEEL |
| Components | Digital Camera, Lens, Lighting Device, Video Board, Control System, Vehicle Detector |
| Camera Resolution: 2 Megapixels |
Transmission: 10/100 LAN, 30 fps Image Sensor: e2v EV76C570 CMOS, 1/1.8", 4.5㎛ Image Sensor: e2v EV76C560 CMOS, 1/1.8", 5.3㎛ Effective Pixels: 1600 x 1200 x 30 |

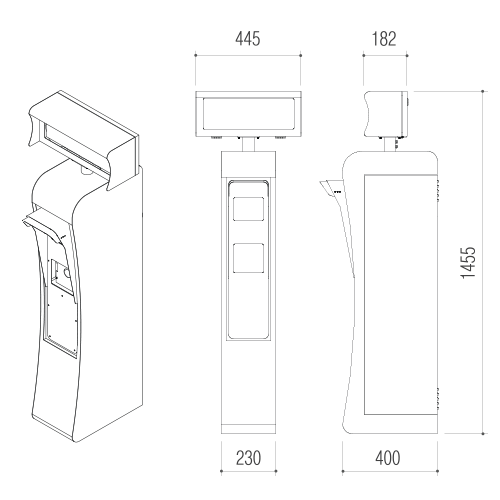

| Dimensions | 445(W) x 500(D) x 1455(H) |
