Parking Control System
License Plate Recognition Camera (Bi-Directional)
License Plate Recognition Camera
(CMP-2LD200)
Records visitor vehicle license plates and displays the plate number upon entry,
while showing user-defined messages on the display during normal operation.
Product Features
-
The video recognition camera is installed at the parking lot entrance/exit to control access by recognizing residents’ license plates upon entry,
and to enable fee collection for visitors. -
Records visitor license plate numbers and displays them upon entry,
while also showing a welcome message on the display. - LED Display "Lot Full" Indicator Function
Product Specifications
Optimal Camera Installation Conditions
- Distance between camera and license plate: 3–5m
- Camera capture range: 2m horizontal, 2m vertical
- Vertical rotation angle: up to 45°, horizontal rotation angle: 30°, front/rear rotation angle: up to 30°
- Vehicle speed: 0–20 km/h
- Lighting device: built-in type
Enclosure Structure
Self-Standing Waterproof Structure
Enclosure Material
Steel, Electrostatic Powder Coating
Camera Lens for License Plate Recognition
- 30 FPS (30 frames per second)
- Focal Length: 10–40 mm, IR Correction
- C-Mount, H.264 & MJPEG Dual Streaming
- Global Shutter
System Specifications
| Power Supply & Capacity | AC 220V, 60Hz |
|---|---|
| Temperature Control | -30℃ ~ +65℃ |
| Material | Steel |
| Configuration | Digital Camera, Lens, Lighting Device, Video Board, Control System, Vehicle Detector |
| Camera 2 Megapixels |
Transmission: Giga LAN, 60 frames/sec Sensor: e2v EV76C560 CMOS, 1/1.8", 5.3㎛ Effective Pixels: 1280 x 1024 at 60 FPS |

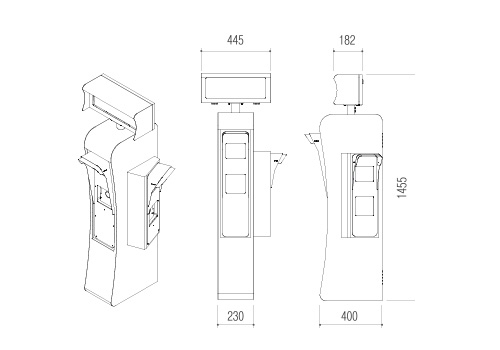

| Dimensions | 445(W) × 500(D) × 1450(H) |
