Parking Control System

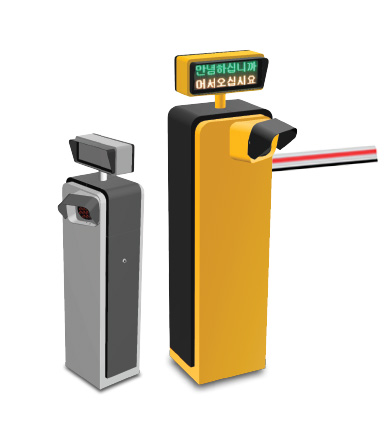

Integrated Vehicle Recognition Device
License Plate Recognition Camera
(CMP-LDG300)
By installing an Integrated Vehicle Recognition Barrier Gate, both license plate recognition and vehicle barrier functions can be provided even in limited spaces.
Product Features
- Vehicle Protection Function: Rubber padding at the bottom of the barrier arm protects vehicles.
- Barrier Vibration Prevention Function: BLDC mechanism provides damping action through springs.
- Count Function: Useful for vehicle entry during rush hours.
- Control Circuit: 1) Barrier OPEN/CLOSE operation signals, 2) Signals for barrier OPEN/CLOSE status and vehicle detection status
- Barrier Braking Device: MICRO-PROCESSOR
- Automatic Lowering Stop Function: Forces the barrier to OPEN automatically if a vehicle enters while the barrier is lowering.
- LED Display "Lot Full" Indicator Function
Product Specifications
Static Camera
- Distance between camera and license plate: 3–5m
- Camera capture range: 2m, vertical 2m
- Vertical rotation angle: 45°, horizontal rotation angle: 30°, front/rear rotation angle: up to 30°
- Vehicle speed: 0–20 km/h (detection option)
- Lighting device: built-in type
System Specifications
| Motor Capacity | 20W (standby), 60W (operation) |
|---|---|
| Power Transmission Method | Motor-driven |
| 90° Vertical Movement Speed | 1.5–3 seconds (adjustable) |
| Barrier Arm Length | 2m–4m |
| Housing Material | Steel (self-standing waterproof structure, electrostatic powder coating) |
| Weight | 35kg |

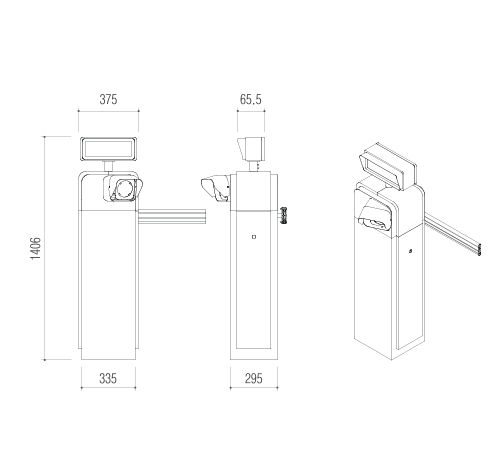

| Housing Dimensions | 375 × 530 × 1406 mm |
| Barrier Arm Type | Straight, Folding |
