Parking Control System

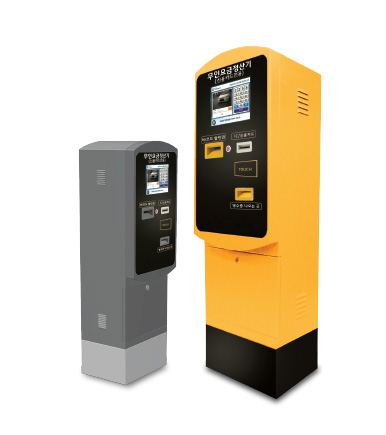

Card-Only Automated Payment Kiosk
Automatic card pay station
(CMP-CP200)
An unmanned system installed in parking lots, where drivers can directly pay parking fees and exit. By entering the license plate number on the LCD screen, the system automatically calculates the fee, allowing payment with discount tickets or credit cards.
Product Features
- User-friendly interface with step-by-step on-screen guidance and voice instructions
- Multi-language support (Korean, English)
- Alarm function for receipt paper shortage and module errors
- Easy control of each equipment module through administrator mode
- Supports discount tickets, credit cards, postpaid transportation cards, and Samsung Pay
Payment & Scalability
Payment
With a 10.4″ LCD monitor and an easy-to-use touch pad interface, payment can be processed following voice guidance. It supports various options including welfare card discounts, credit cards, postpaid transportation cards, Samsung Pay, T-money, and discount ticket payments.
Additional Scalability
By installing a location checker, location verification services can be provided through the pre-payment kiosk.
Product Specifications
| Configuration | CPU Board, Interface Board, Barcode Reader Unit, Thermal Printer, VoIP Magnetic Reader, IC Credit Card (with NFC), 10.4" LCD Touch Monitor |
|---|---|
| Enclosure Type | Self-standing waterproof, front panel structure |
| Material | STEEL |
| Dimensions | 400(W) x 1300(H) x 350(D) |
| Weight | Approx. 30kg |
| Control Panel | Includes all reports and aggregation for internal inspection, with device control capability |
