Parking Control System
Automated Payment Kiosk (Pre-Payment / Exit)

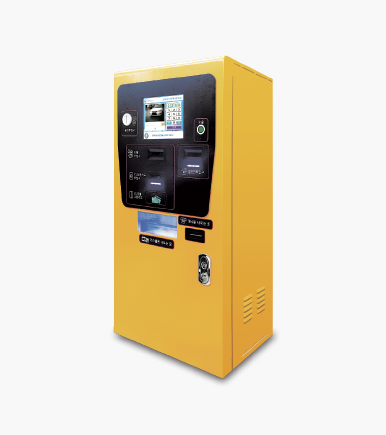

Automatic Pay Station
(CMP-AP200)
An unmanned system installed in parking lots that allows drivers to directly pay parking fees using cash, credit cards, or various discount tickets, and then exit.
Product Features
- Drivers pay parking fees directly before exiting
- Easy interface with step-by-step on-screen and voice guidance
- Remote control via parking management program
- Multi-language support (Korean, English)
- Alarm function for cash shortage, receipt paper shortage, and module errors
- Easy control of each equipment module through administrator mode
- Various payment methods: Cash, Credit Card, Prepaid
- Supports Credit Cards, Postpaid Transportation Cards, Samsung Pay, and T-money
Product Features
Coin Handling System
- Recognizes 100 KRW / 500 KRW coins
- Coin dispenser releases up to 5 coins per second
Bill Handling System
- Bill dispenser stores 1,000 / 2,000 bills
- Bill recognition: 1,000 / 5,000 / 10,000 / 50,000 KRW
System Specifications
| CPU | CPU Board, Interface Board, Bill & Coin Acceptor, Barcode Reader Unit, Thermal Printer, VoIP Magnetic Reader, IC Credit Card (with NFC), 10.4" LCD Touch Monitor |
|---|---|
| Enclosure Type | Self-standing waterproof, front panel with front opening structure |
| Enclosure Material | STEEL with powder coating |
| Dimensions | 560(W) x 1300(H) x 450(D) |
| Internal Mechanism | Constructed with STAINLESS and powder-coated STEEL for resistance to corrosion and humidity. Designed with rail system and detachable units for easy replenishment and management of coins and bills, enabling convenient operation and maintenance. |
| Weight | 60kg |
| Control Panel | Implements an interface for all reports, summaries, and device control for internal inspection |
